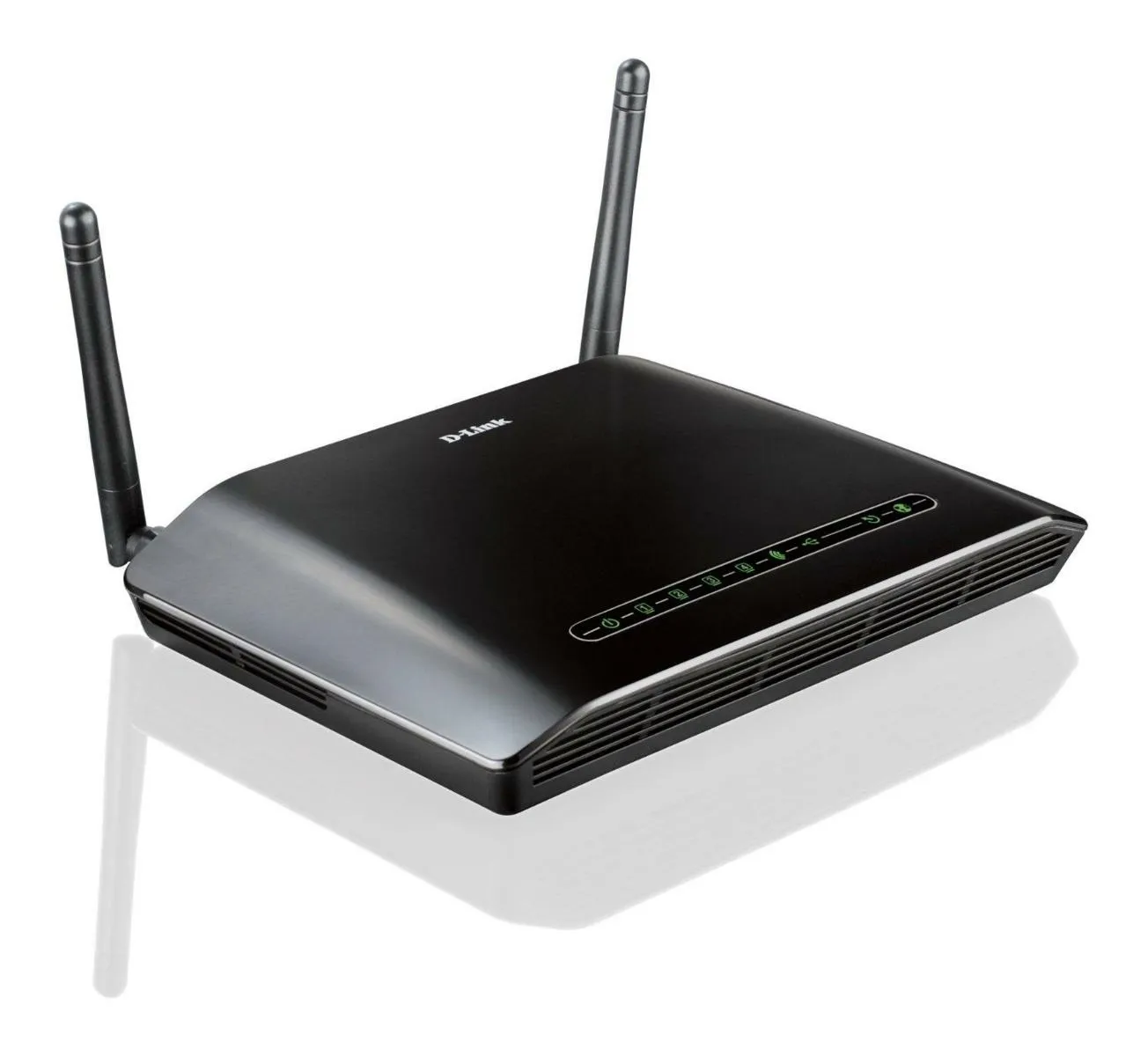

Router adsl d-Link 300mbps wireless + modem dsl-2750b

Device Interfaces

1x RJ-11 ADSL port
4x 10/100BASE-TX MDI/MDIX ports
802.11n WLAN
1x USB 2.0 port

Wireless

802.11b/g/n standards
Up to 300 Mbps (802.11n)
Frequency range: 2.4 GHz to 2.484 GHz
2x Non-detachable MIMO antennas
64/128-bit WEP data encryption
WPA /WPA 2 (personal/enterprise) security
802.1x RADIUS
WPS (Wi-Fi Protected Setup)
MAC address-based access control

ADSL standards

ADSL standards: Multi-mode, ANSI T1.413 Issue 2, ITU G.992.1 (G.dmt) Annex A, ITU G.992.2 (G.lite) Annex A, ITU G.994.1 (G.hs)
ADSL2 standards: ITU G.992.3 (G.dmt.bis) Annex A/L/M, ITU G.992.4 (G.lite.bis) Annex A
ADSL2+ standards: ITU G.992.5 Annex A/L/M

ADSL data rates

G.dmt: 8 Mbps downstream, 832 Kbps upstream
G.lite: 1.5 Mbps downstream, 512 Kbps upstream
ADSL2: 12 Mbps downstream, 1 Mbps upstream
ADSL2+: 24 Mbps downstream, 1 Mbps upstream

ATM & PPP protocols

ATM Adaptation Layer Type 5 (AAL5)
Bridged or routed Ethernet encapsulation
VC and LLC based multiplexing
PPP over Ethernet (PPPoE)
PPP over ATM (RFC 2364)
ITU-T I.610 OAM F4/F5

Network protocols

WAN/LAN Switchable Port
NAT (maximum 4096 NAT sessions)
DHCP server/client/relay
Universal Plug and Play (UPnP) Compliant
Dynamic Domain Name System (DDNS)
Virtual Server

Firewall/Access Security

Built-in NAT firewall
Stateful Packet Inspection (SPI)
DoS attack prevention
Packet filtering (IP/ICMP/TCP/UDP)
Intrusion Detection System (IDS)
DMZ
Parental Control (URL blocking, scheduling)

Virtual Private Network (VPN)

Multiple PPTP/IPSec/L2TP pass-through

Device Configuration/Management

Installation Wizard
Web-based GUI for configuration, firmware upgrade
Code lock to prevent improper firmware upgrade
Telnet
Syslog monitoring

Quality of Service (QoS)

LAN to WAN traffic prioritization/classification
Traffic Shaping

USB Applications:

Samba server
Printer server

Power Input

12 V / 1 A, external

Diagnostic LEDs

Power
LAN (1 to 4)
WLAN
DSL
Internet
WPS
USB

Dimensions (L x W x H)

182.8 x 127.8 x 32 mm

Weight

236 grams

Temperature

Operating: 0 to 40 °C
Storage: -20 to 70 °C

Humidity

5% to 95% non-condensing

Certifications

C-Tick
CE
FCC
IC
WHQL
Wi-Fi Certified
WPS
